2.2.6 Diffusion on a Cartesian grid

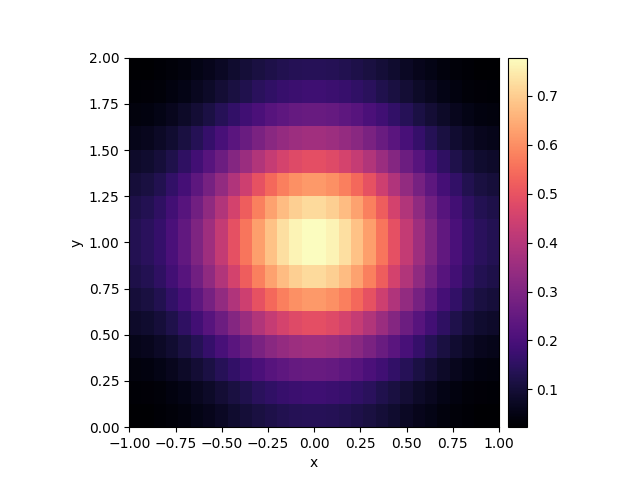

This example shows how to solve the diffusion equation on a Cartesian grid.

  0%|          | 0/1.0 [00:00<?, ?it/s]
Initializing:   0%|          | 0/1.0 [00:00<?, ?it/s]
  0%|          | 0/1.0 [00:00<?, ?it/s]
 29%|██▉       | 0.29/1.0 [00:00<00:00,  2.19it/s]
 29%|██▉       | 0.29/1.0 [00:00<00:00,  1.93it/s]
100%|██████████| 1.0/1.0 [00:00<00:00,  6.66it/s]
100%|██████████| 1.0/1.0 [00:00<00:00,  6.65it/s]

from pde import CartesianGrid, DiffusionPDE, ScalarField

grid = CartesianGrid([[-1, 1], [0, 2]], [30, 16])  # generate grid
state = ScalarField(grid)  # generate initial condition
state.insert([0, 1], 1)

eq = DiffusionPDE(0.1)  # define the pde
result = eq.solve(state, t_range=1, dt=0.01)
result.plot(cmap="magma")
