2.4.9 Solver comparison

This example shows how to set up solvers explicitly and how to extract diagnostic information.

Diagnostic information for explicit Euler solver:
{'controller': {'mpi_run': False, 't_start': 0, 't_end': 1.0, 'profiler': {'solver': 0.001564259999994988, 'tracker': 4.3200000007459494e-05, 'compilation': 5.389334488000003}, 'solver_start': '2026-05-10 08:05:01.028655+00:00', 'successful': True, 'stop_reason': 'Reached final time', 'solver_duration': '0:00:00.001600', 't_final': 1.0}, 'package_version': 'unknown', 'solver': {'class': 'EulerSolver', 'pde_class': 'DiffusionPDE', 'dt': 0.001, 'steps': 1000, 'dt_adaptive': False, 'stochastic': False, 'backend': {'name': 'numba', 'implementation': 'numba'}, 'post_step_data': None}}

Diagnostic information for explicit, adaptive Runge-Kutta solver:
{'controller': {'mpi_run': False, 't_start': 0, 't_end': 1.0, 'profiler': {'solver': 0.00036339000000396027, 'tracker': 3.9529999995124854e-05, 'compilation': 6.540757868}, 'solver_start': '2026-05-10 08:05:07.576394+00:00', 'successful': True, 'stop_reason': 'Reached final time', 'solver_duration': '0:00:00.000397', 't_final': 1.0}, 'package_version': 'unknown', 'solver': {'class': 'RungeKuttaSolver', 'pde_class': 'DiffusionPDE', 'dt': 0.20503424805413245, 'steps': 12, 'dt_adaptive': True, 'stochastic': False, 'backend': {'name': 'numba', 'implementation': 'numba'}, 'dt_statistics': {'min': 0.001, 'max': 0.17113270896498387, 'mean': 0.08333333333333331, 'std': 0.05211340180742521, 'count': 12.0}, 'post_step_data': None}}

Diagnostic information for implicit solver:
{'controller': {'mpi_run': False, 't_start': 0, 't_end': 1.0, 'profiler': {'solver': 0.00792915999998911, 'tracker': 4.7030000004610883e-05, 'compilation': 3.597194719000001}, 'solver_start': '2026-05-10 08:05:11.184076+00:00', 'successful': True, 'stop_reason': 'Reached final time', 'solver_duration': '0:00:00.007968', 't_final': 1.0}, 'package_version': 'unknown', 'solver': {'class': 'ImplicitSolver', 'pde_class': 'DiffusionPDE', 'dt': 0.001, 'steps': 1000, 'dt_adaptive': False, 'stochastic': False, 'backend': {'name': 'numba', 'implementation': 'numba'}, 'function_evaluations': 0, 'post_step_data': None}}

Diagnostic information for Crank-Nicolson solver:
{'controller': {'mpi_run': False, 't_start': 0, 't_end': 1.0, 'profiler': {'solver': 0.011560840000001349, 'tracker': 4.619999999988522e-05, 'compilation': 5.507465768999992}, 'solver_start': '2026-05-10 08:05:16.705940+00:00', 'successful': True, 'stop_reason': 'Reached final time', 'solver_duration': '0:00:00.011600', 't_final': 1.0}, 'package_version': 'unknown', 'solver': {'class': 'CrankNicolsonSolver', 'pde_class': 'DiffusionPDE', 'dt': 0.001, 'steps': 1000, 'dt_adaptive': False, 'stochastic': False, 'backend': {'name': 'numba', 'implementation': 'numba'}, 'function_evaluations': 0, 'post_step_data': None}}

Diagnostic information for Adam-Bashforth solver:
{'controller': {'mpi_run': False, 't_start': 0, 't_end': 1.0, 'profiler': {'solver': 3.407729479000011, 'tracker': 4.491999999345353e-05, 'compilation': 1.7039222189999919}, 'solver_start': '2026-05-10 08:05:18.430631+00:00', 'successful': True, 'stop_reason': 'Reached final time', 'solver_duration': '0:00:03.408042', 't_final': 1.0}, 'package_version': 'unknown', 'solver': {'class': 'AdamsBashforthSolver', 'pde_class': 'DiffusionPDE', 'dt': 0.001, 'steps': 1000, 'dt_adaptive': False, 'stochastic': False, 'backend': {'name': 'numba', 'implementation': 'numba'}, 'post_step_data': None}}

Diagnostic information for scipy solver:
{'controller': {'mpi_run': False, 't_start': 0, 't_end': 1.0, 'profiler': {'solver': 0.6147700300000025, 'tracker': 3.0210000005581605e-05, 'compilation': 0.0009658099999967362}, 'solver_start': '2026-05-10 08:05:21.842159+00:00', 'successful': True, 'stop_reason': 'Reached final time', 'solver_duration': '0:00:00.614860', 't_final': np.float64(1.0)}, 'package_version': 'unknown', 'solver': {'class': 'ScipySolver', 'pde_class': 'DiffusionPDE', 'dt': 0.001, 'steps': 61, 'stochastic': False, 'backend': {'name': 'numba', 'implementation': 'numba'}}}

import pde

# initialize the grid, an initial condition, and the PDE
grid = pde.UnitGrid([32, 32])
field = pde.ScalarField.random_uniform(grid, -1, 1)
eq = pde.DiffusionPDE()


def run_solver(solver, label):
    """Helper function testing the solver."""
    controller = pde.Controller(solver, t_range=1, tracker=None)
    sol = controller.run(field, dt=1e-3)
    sol.label = label + " solver"
    print(f"Diagnostic information for {sol.label}:")
    print(controller.diagnostics)
    print()
    return sol


# try different solvers
solutions = [
    run_solver(pde.EulerSolver(eq), "explicit Euler"),
    run_solver(
        pde.RungeKuttaSolver(eq, adaptive=True), "explicit, adaptive Runge-Kutta"
    ),
    run_solver(pde.ImplicitSolver(eq), "implicit"),
    run_solver(pde.CrankNicolsonSolver(eq), "Crank-Nicolson"),
    run_solver(pde.AdamsBashforthSolver(eq), "Adam-Bashforth"),
    run_solver(pde.ScipySolver(eq), "scipy"),
]

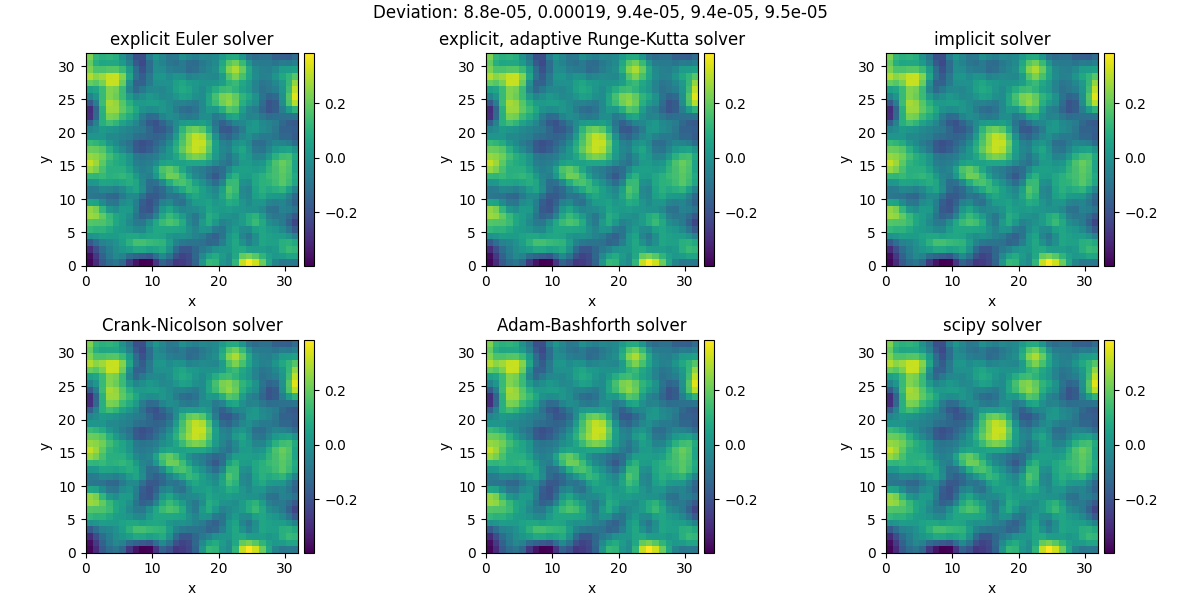

# plot both fields and give the deviation as the title
deviations = [(solutions[0] - sol).fluctuations for sol in solutions]
title = "Deviation: " + ", ".join(f"{deviation:.2g}" for deviation in deviations[1:])
pde.FieldCollection(solutions).plot(title=title, arrangement=(2, 3))
