2.2.3 Simple diffusion equation

This example solves a simple diffusion equation in two dimensions.

  0%|          | 0/10.0 [00:00<?, ?it/s]
Initializing:   0%|          | 0/10.0 [00:00<?, ?it/s]
  0%|          | 0/10.0 [00:03<?, ?it/s]
  0%|          | 0.006/10.0 [00:03<1:39:16, 596.01s/it]
  3%|▎         | 0.311/10.0 [00:03<01:51, 11.51s/it]
 49%|████▊     | 4.863/10.0 [00:03<00:03,  1.33it/s]
 49%|████▊     | 4.863/10.0 [00:03<00:03,  1.31it/s]
100%|██████████| 10.0/10.0 [00:03<00:00,  2.69it/s]
100%|██████████| 10.0/10.0 [00:03<00:00,  2.69it/s]

from pde import DiffusionPDE, ScalarField, UnitGrid

grid = UnitGrid([64, 64])  # generate grid
state = ScalarField.random_uniform(grid, 0.2, 0.3)  # generate initial condition

eq = DiffusionPDE(diffusivity=0.1)  # define the pde
result = eq.solve(state, t_range=10)

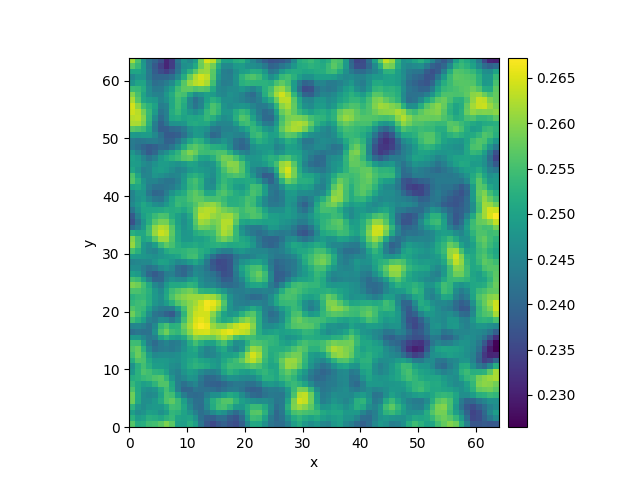

result.plot()
